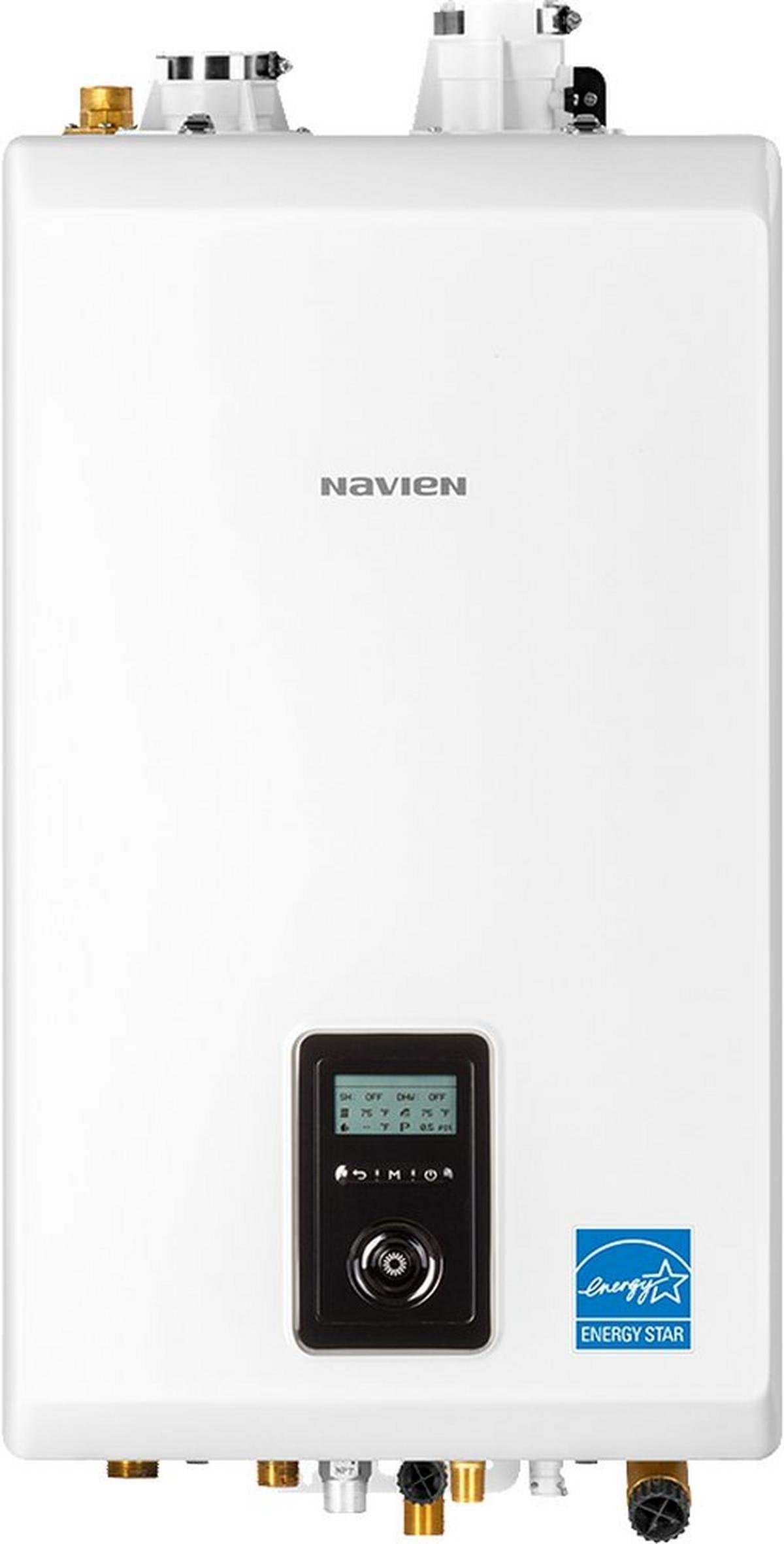

Navien NCB-H Series130 MBH Condensing Combi Boiler
Puts 130 MBH of heating capacity and up to 10.4 GPM of domestic hot water into one wall-hung cabinet, with a 15:1 turndown ratio on the DHW side. That wide modulation range holds a steady shower temperature at low draw instead of swinging hot and cold, and keeps the burner running at part load through most of the heating season.
95% AFUE Stainless steel heat exchanger Direct-vent sealed combustion
130KBTU heating capacity
10.4GPMDomestic hot water flow
15:1DHW turndown ratio
95%AFUE efficiency
Runs on natural gas or propane, mounts on the wall in a compact 12-4/5 in. deep cabinet, and operates on standard 120V power.
Technical specification
| Type | Condensing combi boiler (space heating + DHW) |
|---|---|
| Heating capacity | 130,000 BTU (130 MBH) |
| Domestic hot water flow | Up to 10.4 GPM |
| DHW turndown ratio | 15:1 |
| Heat exchanger | Stainless steel |
| Efficiency | 95% AFUE |
| Venting | Direct-vent sealed combustion, sidewall, PVC or polypropylene, no chimney |
| Fuel | Natural gas or propane |
| Cabinet depth | 12-4/5 in., wall-mounted |
| Power | Standard 120V |
| Certification | ENERGY STAR qualified |
Installation notice
Installation must be performed by a licensed gas heating contractor.
Navien NCB-H Series combi boiler. Follow the installation manual, local gas and plumbing codes, and manufacturer instructions.
