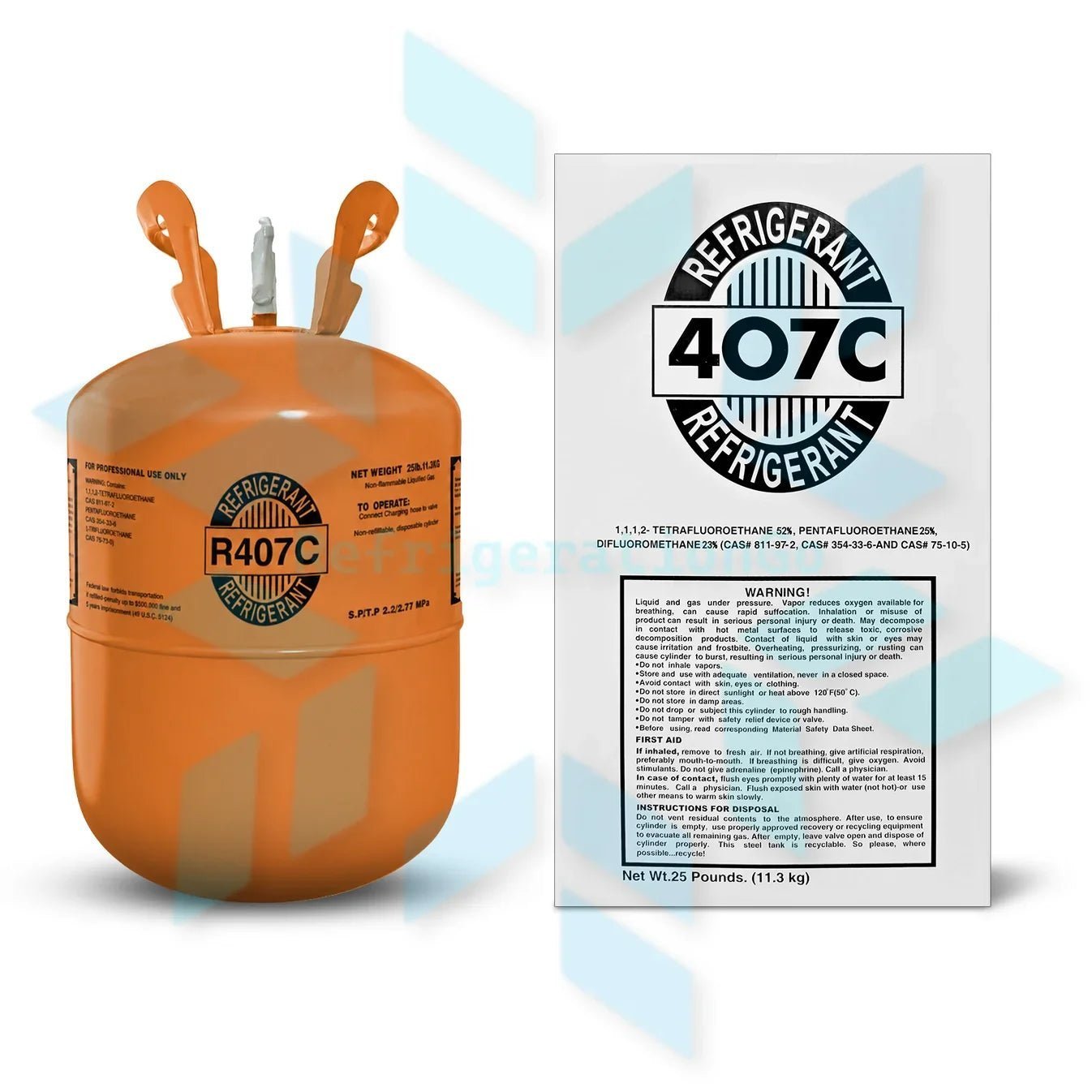

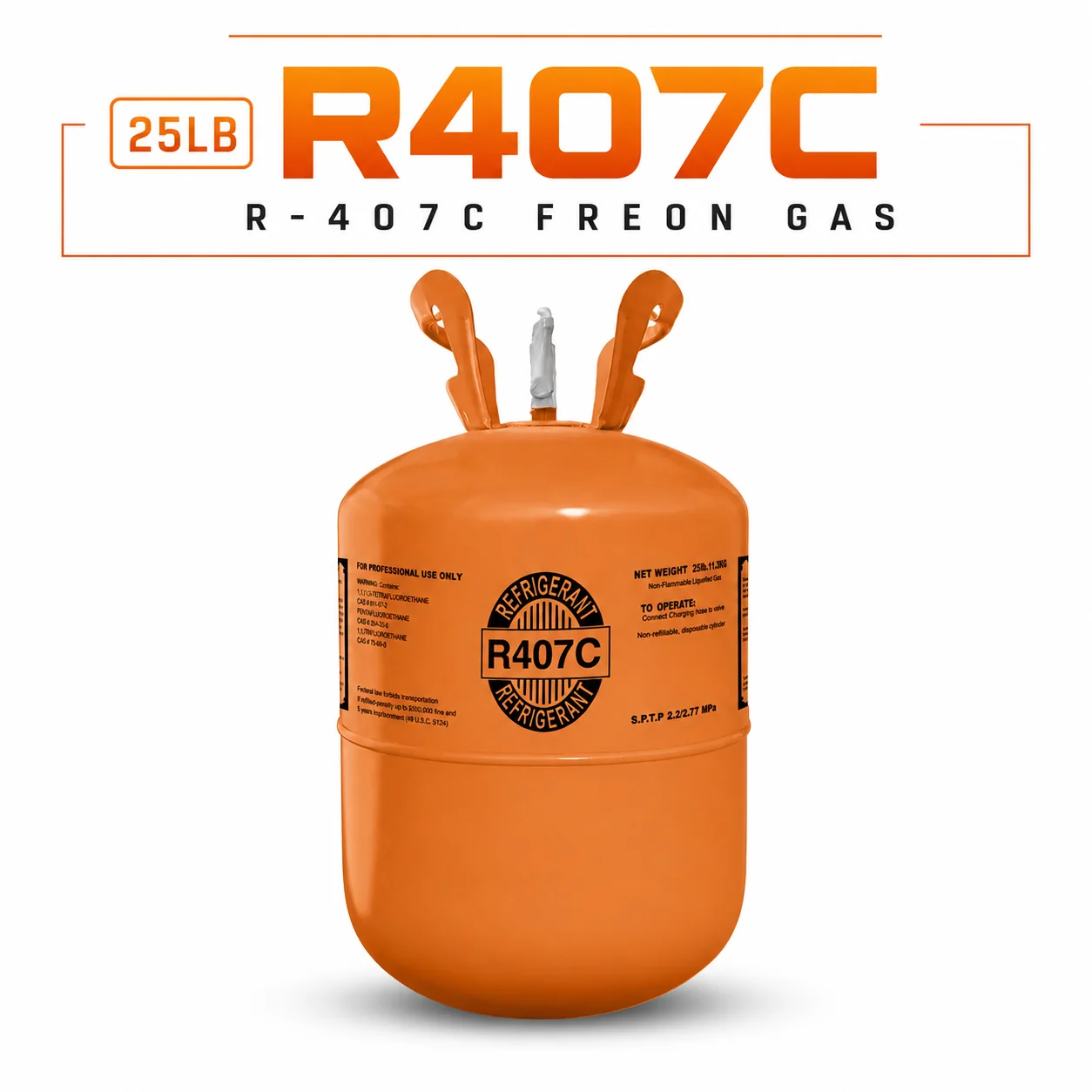

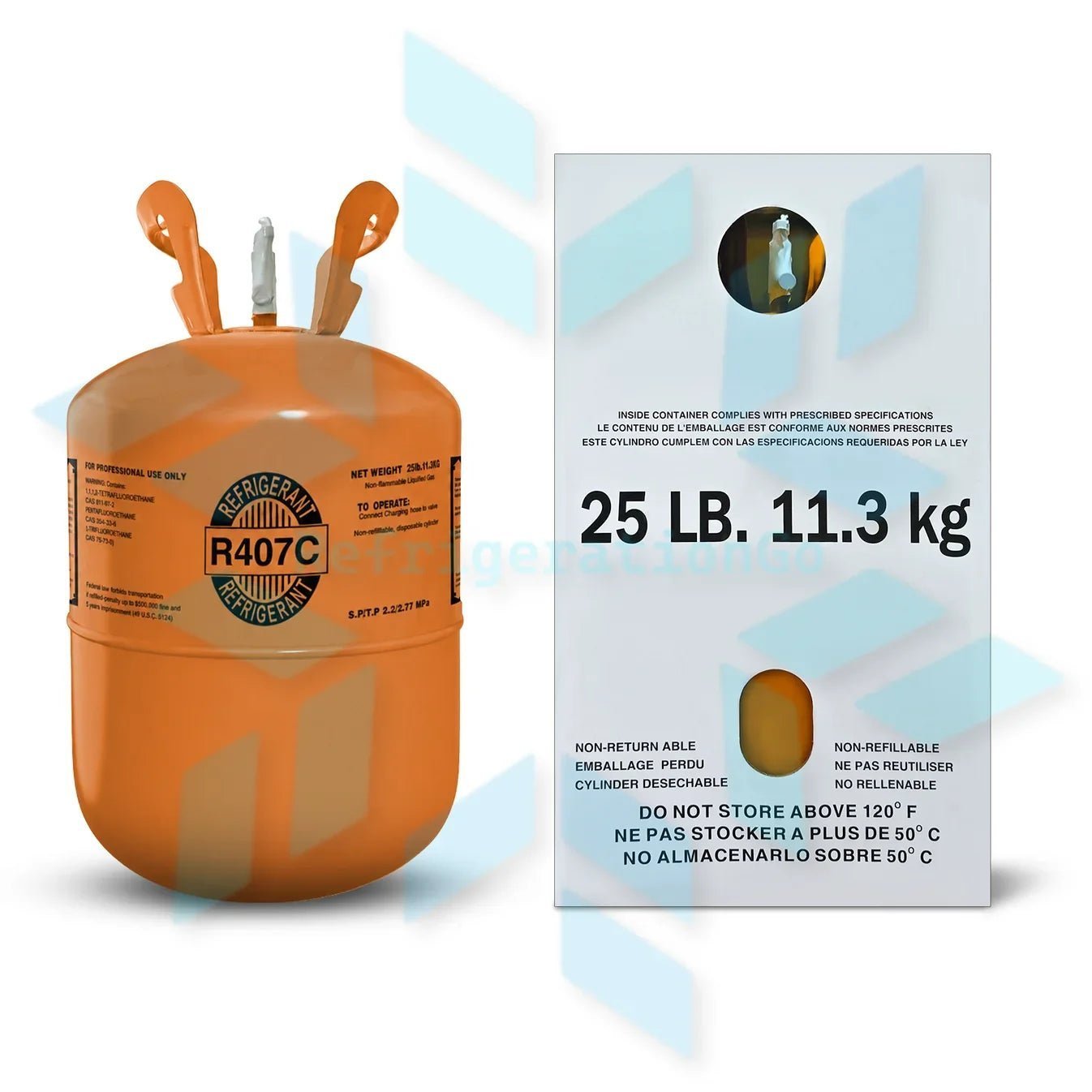

R-407C25 lb Cylinder
The established R-22 retrofit blend for air conditioning and medium-temperature work.
Supplied new and unused in a non-refillable steel service cylinder with the manufacturer valve seal intact, packed to 49 CFR hazardous-materials standards and processed within 1 business day after order review.
Technical specification
| Refrigerant designation | R-407C |
|---|---|
| Chemical family | HFC zeotropic blend |
| Composition | R-32 / R-125 / R-134a |
| Nominal blend ratio | 23 / 25 / 52 % by weight |
| ASHRAE 34 safety class | A1 — lower toxicity, no flame propagation |
| Global warming potential | 1774 (AR4, 100-year) |
| Ozone depletion potential | 0 |
| Temperature glide | ≈ 13 °F — high glide |
| Boiling point at 1 atm | −47.2 °F / −44.0 °C |
| Compatible lubricant | POE (polyol ester) |
| Net weight | 25 lb / 11.3 kg |
| Cylinder type | Non-refillable steel service cylinder |
| Cylinder dimensions | 17.2 in high × 10.2 in diameter |
| SKU | RM-407C-25 |
Compatible applications
R-22 retrofits
Approved conversions where the manufacturer publishes a procedure.
Air conditioning
Comfort cooling equipment originally designed for R-407C.
Medium-temp refrigeration
Coolers and process systems in the medium-temperature band.
Before you order
R-407C has roughly 13 °F of temperature glide. Take superheat and subcooling from a pressure-temperature chart that lists dew and bubble points separately, or your readings will be wrong.
Retrofitting from R-22 requires an oil change to POE. Mineral oil will not circulate reliably with this blend.
Safe handling
- Verify the equipment nameplate specifies R-407C and note the approved charge before connecting.
- This system requires POE (polyol ester). Mixing incompatible lubricants causes compressor failure.
- Charge in the liquid phase only — vapour charging shifts the composition of a blend.
- Use gauges, hoses and recovery equipment rated for this refrigerant’s operating pressures.
- Store upright and secured, in a cool, dry, ventilated area away from heat, sparks and open flame.
- Recover refrigerant — knowingly venting is a violation of Clean Air Act Section 608.
Shipping
Service cylinder. High-glide zeotropic blend. Charge liquid only and use dew/bubble point P-T data. Follow the cylinder label, safety data sheet and equipment manufacturer instructions.
