Description

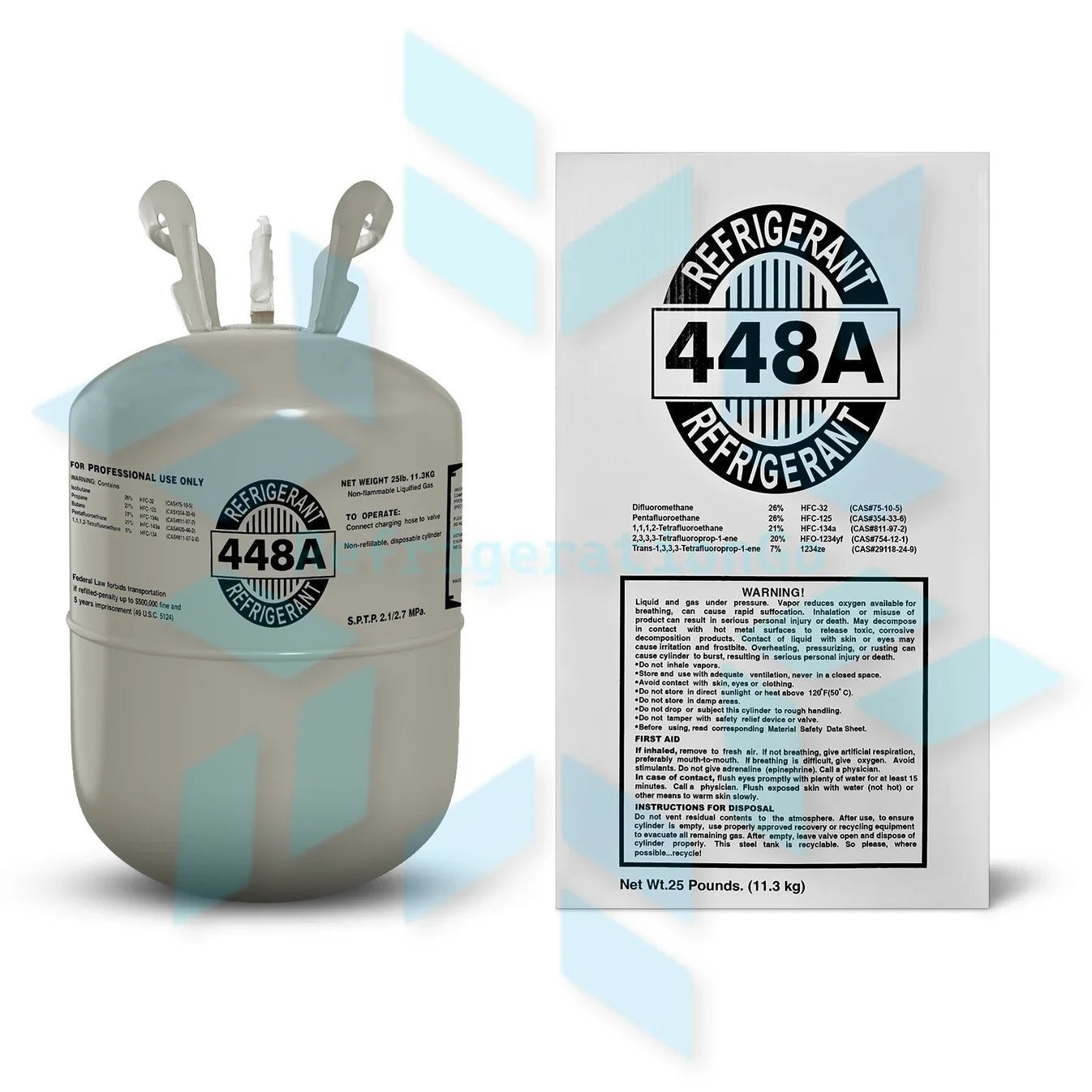

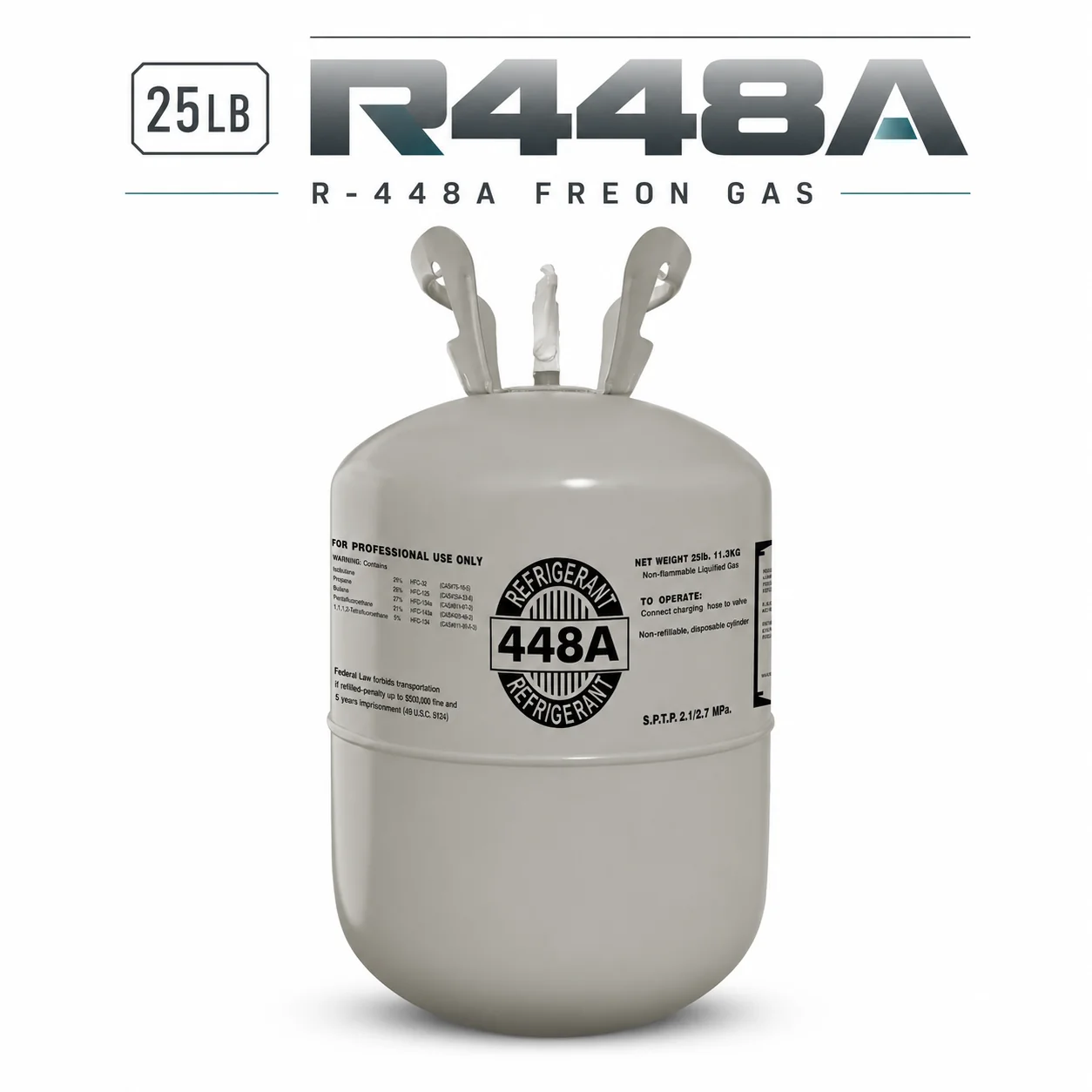

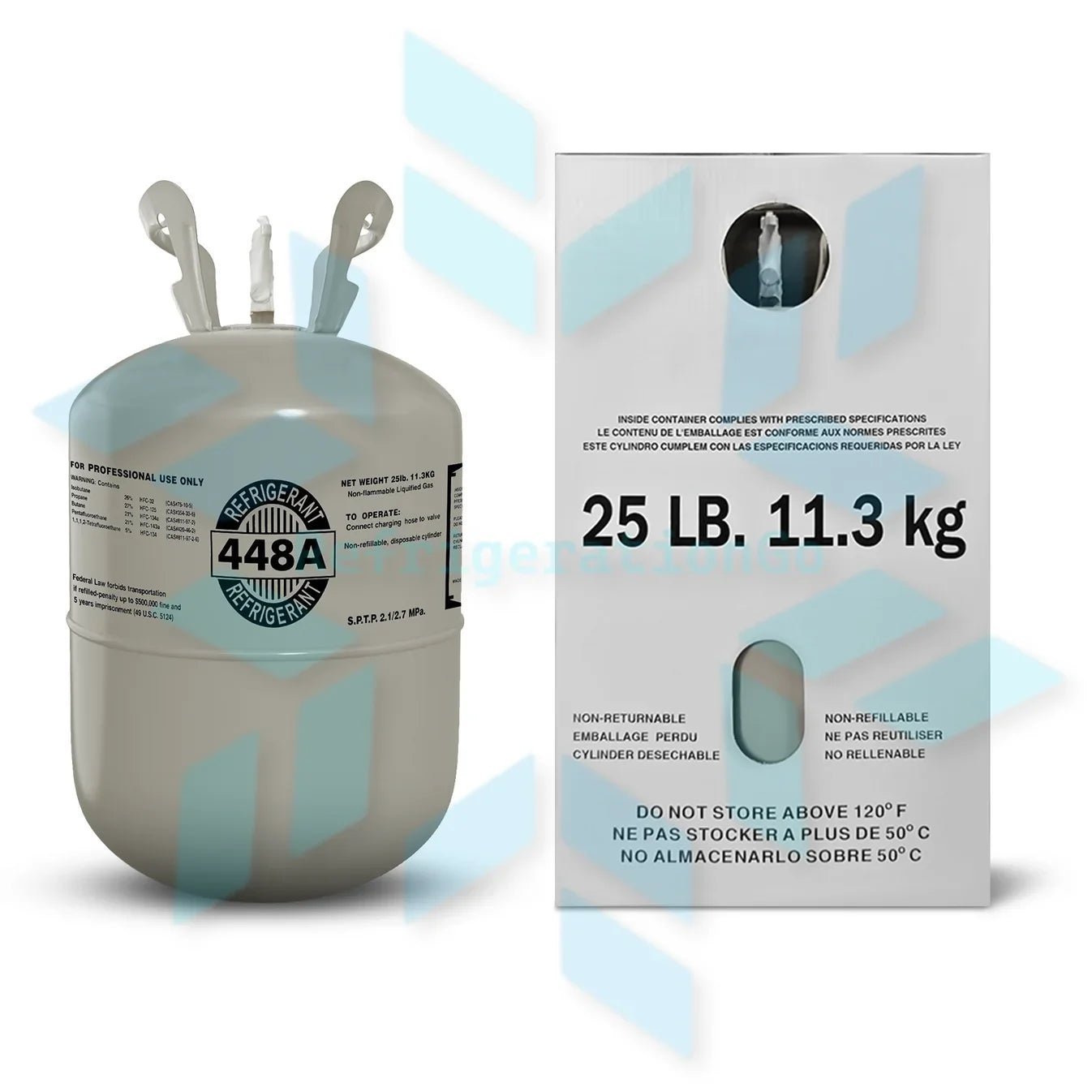

R-448A25 lb Cylinder
Lower-GWP replacement for R-404A in supermarket racks and commercial refrigeration.
Supplied new and unused in a non-refillable steel service cylinder with the manufacturer valve seal intact, packed to 49 CFR hazardous-materials standards and processed within 1 business day after order review.
Technical specification
| Refrigerant designation | R-448A |
|---|---|
| Chemical family | HFO / HFC zeotropic blend |
| Composition | R-32 / R-125 / R-1234yf / R-134a / R-1234ze |
| Nominal blend ratio | 26 / 26 / 20 / 21 / 7 % by weight |
| ASHRAE 34 safety class | A1 — lower toxicity, no flame propagation |
| Global warming potential | 1387 (AR4, 100-year) |
| Ozone depletion potential | 0 |
| Temperature glide | ≈ 9 °F — moderate glide |
| Boiling point at 1 atm | −50.1 °F / −45.6 °C |
| Compatible lubricant | POE (polyol ester) |
| Net weight | 25 lb / 11.3 kg |
| Cylinder type | Non-refillable steel service cylinder |
| Cylinder dimensions | 17.2 in high × 10.2 in diameter |
| SKU | RM-448A-25 |
Compatible applications
Supermarket racks
Parallel rack systems in low and medium temperature service.
Commercial freezers
Low-temperature boxes converted from R-404A.
Display refrigeration
Cases and merchandisers across the medium-temp band.
Before you order
R-448A cuts GWP by roughly two-thirds versus R-404A while running on the same POE oil, which is why most rack conversions land here.
Discharge temperatures run higher than R-404A. Check compressor limits and consider head-pressure management before converting.
Safe handling
- Verify the equipment nameplate specifies R-448A and note the approved charge before connecting.
- This system requires POE (polyol ester). Mixing incompatible lubricants causes compressor failure.
- Charge in the liquid phase only — vapour charging shifts the composition of a blend.
- Use gauges, hoses and recovery equipment rated for this refrigerant’s operating pressures.
- Store upright and secured, in a cool, dry, ventilated area away from heat, sparks and open flame.
- Recover refrigerant — knowingly venting is a violation of Clean Air Act Section 608.
Shipping
Service cylinder. Zeotropic blend with ~9 °F glide. Charge liquid only and use dew/bubble point P-T data. Follow the cylinder label, safety data sheet and equipment manufacturer instructions.
